The Panasonic GP-MF852PT Double Speed Machine Vision Camera is a double speed machine vision camera produced by Panasonic. The camera uses a 2/3-inch double-speed scanning type CCD image sensor with 768 (H) x 494 (V) pixels.

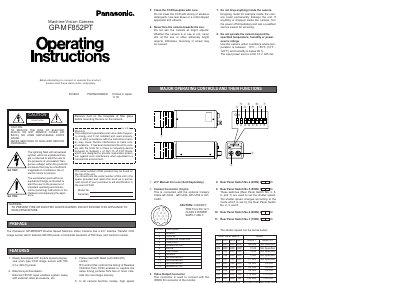

The document serves as a user guide for the Panasonic GP-MF852PT, a double speed machine vision camera featuring an interline transfer CCD image sensor. It outlines essential safety warnings regarding cleaning the CCD faceplate and avoiding bright light sources to prevent damage or blooming.
The manual details system connections, including power supply requirements (DC 12V Class 2) and lens mounting procedures for C-mount lenses under 300g. It also explains how to configure shutter speeds using rear panel switches and describes external synchronization capabilities.
| Image Sensor Type | Inter Line Transfer type CCD |
|---|---|
| Resolution | 768 (H) x 494 (V) pixels |
| Horizontal Resolution | 500 lines at center |
| Lens Mount | C-Mount |
| Power Source | DC + 12 V, 465 mA |
| Operating Temperature | -10°C - +50°C (14°F - 122°F) |
Use lens tissue or a cotton tipped applicator and ethanol; do not use strong or abrasive detergents.
A regulated DC power supply capable of supplying DC 12 V +10 % at 465 mA or more, rated CLASS 2.
