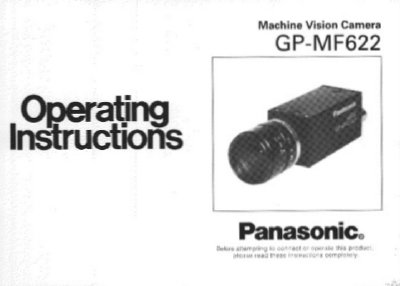

This manual provides instructions for the Panasonic GP-MF622 Machine Vision Camera, a device featuring a 1/2" Interline Transfer CCD image sensor with 380,000 pixels. It details the camera's capabilities, including selectable scanning systems and external synchronization options, to assist users in achieving high-quality video processing for machine vision applications.
| Image Sensor | 1/2" Interline Transfer CCD |
|---|---|
| Resolution | 380,000 pixels |
| Horizontal Resolution | 570 lines |
| Pixel Dimensions | 768 (H) x 494 (V) |
| Shutter Speed | 1/96,000 second |
| Power Source | DC 12 V, 170 mA |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 29(W) x 29(H) x 65(D) mm |
| Weight | 86 g |
It uses a 1/2" Interline Transfer CCD image sensor.
Yes, high-speed shutters up to 1/96,000 second with a trigger function enable this.
The camera should be operated between -10°C and +50°C.
Use lens tissue or a cotton-tipped applicator with ethanol.
