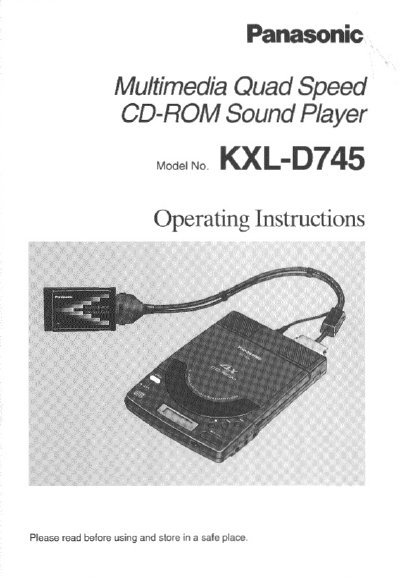

Panasonic KXL-D745 Multimedia Quad Speed CD-ROM Sound Player Operating Instructions

Brand: Panasonic
Category: Player
Document type: User Manual
Language: English
Pages: 68
File format: PDF
File size: 1.4 MB
Published: 08 August, 2012
Updated: 22 August, 2012
MD5 checksum: 06F73225A10EBF75AB36C3FE42082CA8
PDF: Panasonic KXL-D745 Multimedia Quad Speed CD-ROM Sound Player Operating Instructions PDF

About this manual

This manual provides operating instructions for the Panasonic KXL-D745 Multimedia Quad Speed CD-ROM Sound Player. It details how to use the device as an external drive with notebook or desktop computers via PCMCIA or SCSI interfaces. The guide covers power supply options including AC adaptors and batteries, as well as connecting microphones and audio cables.

What's inside

Precautions
Accessories
Part Names
Power Supply
Connection to Notebook Computer
Connection to Desktop Computer
Software Installation
Inserting/Removing a CD
Audio Volume Control
Operation Audio Recorder

Specifications

Max Transfer Speed	600 KB/s
Laser Output Power	Less than 52.65 pW
Wave Length	790 nm
Emission Duration	Continuous

Frequently asked questions

What is the maximum transfer speed of this player?

The Quad Speed External Drive has a maximum speed of 600 KB/s.

Can the KXL-D745 be powered by batteries?

Yes, it can operate on six 'AA' size alkaline batteries or an optional rechargeable Ni-Cd battery.

What is the wavelength of the laser used in this device?

The laser diode operates at a wave length of 790 nm.
