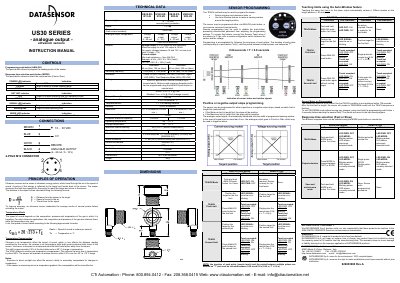

This document is the instruction manual for US30 series analog output ultrasonic sensors, which introduces the control method, working principle, electrical connection and other contents of the sensor.
This document provides operating instructions for the Datasensor US30 Series of ultrasonic sensors. These devices utilize ultrasonic energy pulses to measure distance by calculating transit time, with outputs available in 4..20mA or 0...10V configurations.
The manual details programming procedures using either an ANALOG push-button or a remote command line for setting minimum and maximum detection limits. It also covers the selection of response times (Fast or Slow) and explains how temperature compensation affects sensing window limits.
| Power supply | 10...30 Vdc |
|---|---|
| Response time (Fast) | 45 ms or 92 ms |
| Operating temperature | 0...70°C |
| Mechanical protection | IP67 |
An increase in air temperature shifts both sensing window limits closer to the sensor, while a decrease shifts them farther away.
Yes, it can be selected as Fast or Slow using the MODE push-button or remote line.
The warranty covers defects for 86 months from the manufacturing date.
