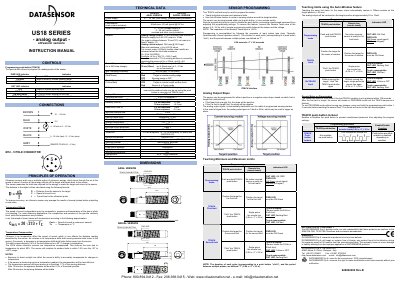

This document is an instruction manual for the US18 SERIES ultrasonic sensor, which describes the analog output, control programming, and principles of operation and characteristics of the sensor.
This document is the instruction manual for the Datasensor US18 Series of ultrasonic sensors featuring analog voltage or current outputs. It details the controls, including the TEACH push-button and LED indicators (PWR, OUT), and explains how to program sensing window limits using either the local button or a remote teach input.
| Power Supply | 10...30 Vdc |
|---|---|
| Consumption | 65mA max. |
| Output Configurations | 0...10 Vdc or 4...20 mA |
| Operating Temperature | -20 to +60°C |
| Storage Temperature | -25 to +100°C |
| Operating Distance (Typical) | 30...300 mm |
| Weight | 25g |
The sensor can be programmed via its push-button or remotely via a TEACH input using a sequence of pulses.
Temperature changes shift sensing window limits; however, this series is temperature compensated to reduce error by about 90%.
