The SD1020S-SD10100S DPAK surface mount Schottky barrier rectifier is rated at 20 to 100 volts and 10 amps. The product has a plastic package, low profile package, built-in strain relief, metal to silicon rectifier majority carrier conduction, low power loss, high efficiency, high current capability, low VF, high surge capacity, and is suitable for low voltage high frequency inverters, free wheeling, and polarity protection applications.

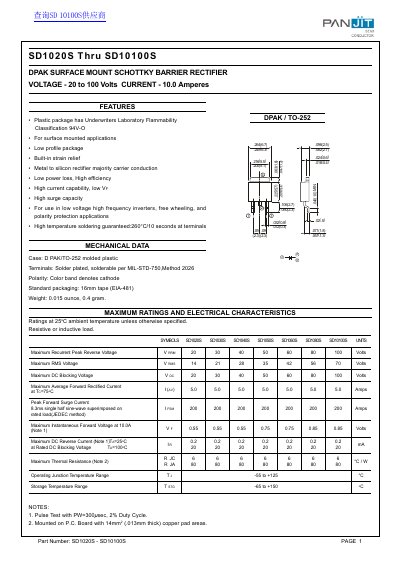

This document is a datasheet for the STMicroelectronics SD1020S through SD10100S series of DPAK surface mount Schottky barrier rectifiers. The devices are designed for use in low voltage high frequency inverters, free wheeling, and polarity protection applications. They feature a low profile plastic package with built-in strain relief and are guaranteed for high temperature soldering up to 260°C for 10 seconds.
| Voltage Range | 20 to 100 Volts |
|---|---|
| Current Rating | 10.0 Amperes |
| Package Type | DPAK / TO-252 |
| Flammability Classification | 94V-0 |
| High Temperature Soldering | 260°C/10 seconds |
| Standard Packaging | 16mm tape |
The device is rated for a maximum current of 10.0 Amperes.
The rectifier operates at voltages ranging from 20 to 100 Volts.
The device guarantees high temperature soldering up to 260°C for 10 seconds.
