This document describes the features and characteristics of the SD1020CT~SD10150CT series of Schottky barrier rectifiers. These rectifiers are suitable for surface mounted applications and have low power loss, high efficiency, and high surge capacity. They can be used in low voltage high frequency inverters, free wheeling, and polarity protection applications.

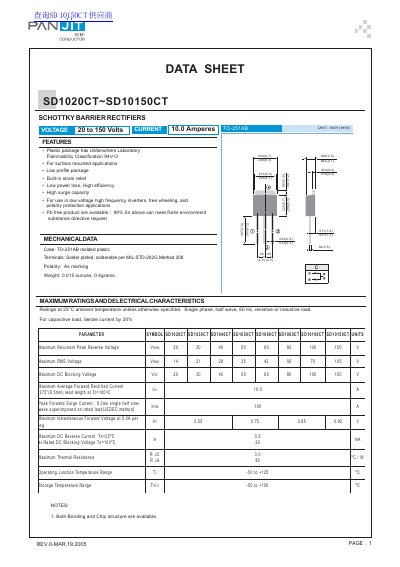

The document is a semiconductor datasheet for PANJIT Schottky Barrier Rectifiers, specifically the SD1020CT through SD10150CT series. These devices are designed for surface-mounted applications and feature a low profile plastic package with built-in strain relief. They are suitable for use in low voltage, high frequency inverters, free-wheeling, and polarity protection circuits.
| Maximum Average Forward Rectified Current | 10.0 A |
|---|---|
| Peak Forward Surge Current | 400 A |
| Operating Junction Temperature Range | -50 to +125 °C |
| Storage Temperature Range | -50 to +150 °C |
| Maximum Thermal Resistance | 80 °C/W |
The reverse voltage ratings range from 20V to 150V.
Yes, Pb free products are available where 99% Sn above can meet RoHS environment substance directive requests.
The package is a TO-251AB molded plastic case.
