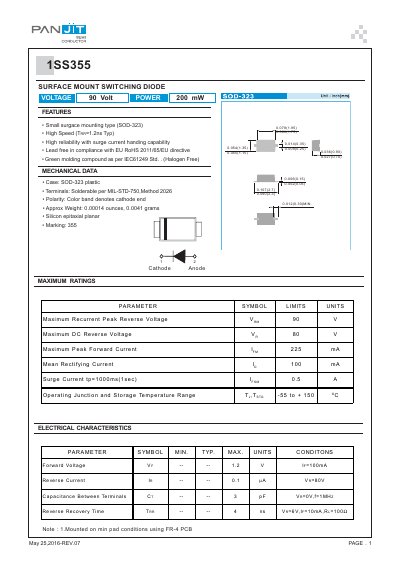

Datasheet for the Panjit 1SS355 90V surface mount switching diode, detailing electrical characteristics, mechanical data, and packing information.
This document is a datasheet for the Panjit 1SS355, a 90-volt, 200-milliwatt surface mount switching diode. It features a small SOD-323 package design with high-speed switching capabilities (typical reverse recovery time of 1.2ns) and is lead-free compliant with EU RoHS directives.
The datasheet provides comprehensive electrical characteristics, including maximum ratings for reverse voltage and forward current, as well as typical forward and reverse voltage curves. It also includes mechanical mounting pad layouts and detailed packing order information for various packaging types such as tape and reel.
| Maximum Recurrent Peak Reverse Voltage | 90 V |
|---|---|
| Maximum DC Reverse Voltage | 80 V |
| Maximum Peak Forward Current | 225 mA |
| Mean Rectifying Current | 100 mA |
| Surge Current | 0.5 A |
| Operating Junction and Storage Temperature Range | -55 to + 150°C |
| Forward Voltage | 1.2 V |
| Reverse Current | 0.1 μA |
| Capacitance Between Terminals | 3 pF |
| Reverse Recovery Time | 4 ns |
The 1SS355 is a small surface mounting type diode in the SOD-323 plastic package.
Yes, the diode is lead-free and complies with the EU RoHS 2011/65/EU directive.
The typical reverse recovery time (T RR) is 1.2ns.
