This document describes the features and characteristics of the SD1020YS to SD10100YS series products, including plastic packaging, surface mount applications, low power loss, high efficiency, high current capability, low VF, and high surge capacity. It is suitable for low voltage high frequency inverters, free-wheeling, and polarity protection applications.

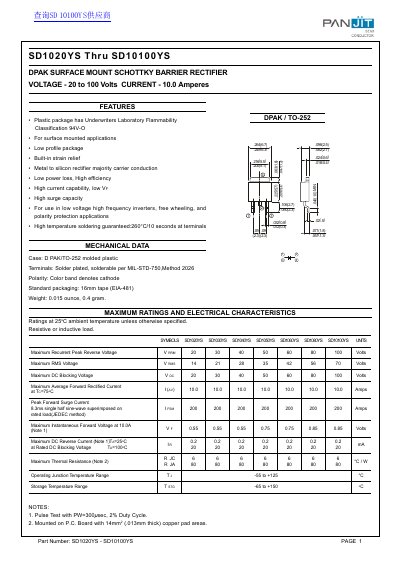

This document is a technical datasheet for the PANJIT SD1020YS series of Schottky barrier rectifiers. The devices are available in DPAK/TO-252 plastic packages with voltage ratings ranging from 20 to 100 volts and a current capability of 10.0 amperes.
Key features include low power loss, high efficiency, and high surge capacity suitable for low voltage high frequency inverters, free wheeling, and polarity protection applications. The datasheet provides maximum ratings, electrical characteristics at various temperatures, and typical characteristic curves.
| Voltage Range | 20 to 100 Volts |
|---|---|
| Current Rating | 10.0 Amperes |
| Package Type | DPAK/TO-252 molded plastic |
| Flammability Rating | UL 94V-O |
| High Temperature Soldering | 260°C/10 seconds |
They are suitable for use in low voltage high frequency inverters, free wheeling, and polarity protection applications.
The standard packaging is 16mm tape (EIA-481).
