This document introduces the features and characteristics of the P6SMBJ series surface mount transient voltage suppressors, including peak voltage, peak power, and operating temperature range

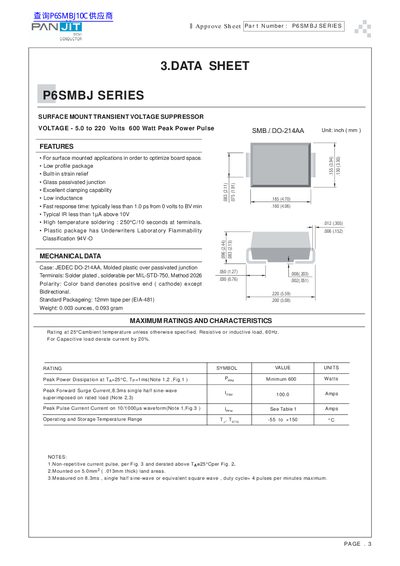

This datasheet describes the P6SMBJ series surface‑mount transient voltage suppressors. It lists key features such as low profile package, built‑in strain relief, glass‑passivated junction and high clamping capability.
Technical data include voltage rating, peak power dissipation, package type, weight, operating temperature range and detailed pulse current ratings. Graphs illustrate peak pulse power curves, derating curves and typical capacitance versus voltage.
| Voltage rating | 5.0 to 220 V |
|---|---|
| Package | JEDEC DO-214AA |
| Weight | 0.003 oz (0.093 g) |
The devices operate from 5.0 V up to 220 V.
The devices are supplied in a JEDEC DO‑214AA surface‑mount package.
