SD1020YT-SD10100YT is a Schottky diode produced by Schneider Electric. The rated voltage is 20-100V and the rated current is 10A. The diode uses TO-251AB packaging and has the characteristics of low power loss, high efficiency, high current capability, low VF, high surge capacity, etc. It can be used in low voltage high frequency inverters, free wheeling and polarity protection applications.

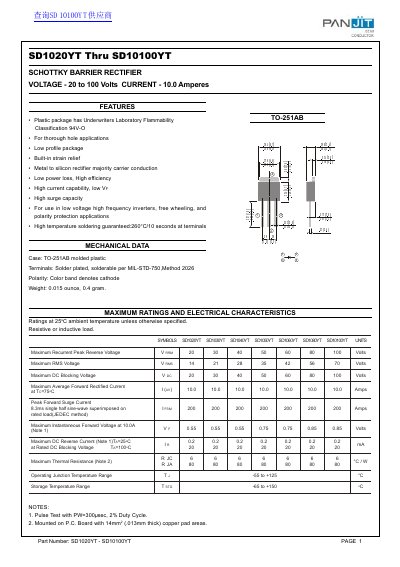

This document provides technical specifications for the ZSiSD SD1020YT through SD10100YT Schottky Barrier Rectifiers. Key features include a low profile plastic package with built-in strain relief, high current capability, and suitability for low voltage high frequency inverters and polarity protection applications. The devices are guaranteed for high temperature soldering up to 260°C for 10 seconds.
| Voltage Range | 20 to 100 Volts |
|---|---|
| Current Range | 10.0 Amperes |
| Package Type | TO-251AB molded plastic |
| Maximum Average Forward Rectified Current | 10.0 Amps |
| Peak Forward Surge Current | 200 Amps |
| Operating Junction Temperature Range | -55 to +125 °C |
The maximum average forward rectified current at a case temperature of 75°C is 10.0 Amps.
The device operates within a junction temperature range of -55 to +125 °C.
