1SMB3EZ6.8~1SMB3EZ100 is a low power 3.0W Schottky diode with a rated voltage of 6.8V to 100V. The diode has low power, low offset voltage, low voltage drop and low reverse leakage current. The diode is packaged in a JEDEC DO-214AA plastic package with a flammability rating of 94V-O.

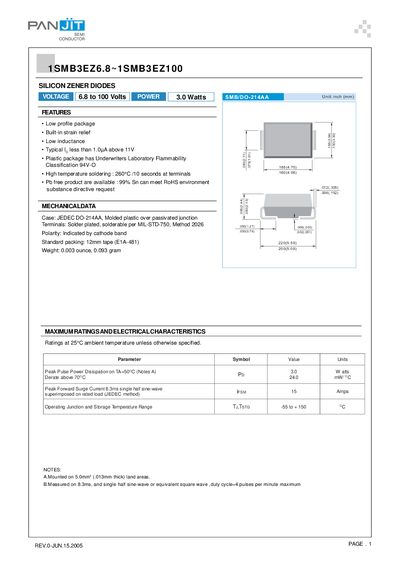

The 1SMB3EZ series are low‑profile silicon Zener diodes available from 6.8 V to 100 V with a 3 W power rating. Features include a molded plastic package, built‑in strain relief, low inductance and UL‑94V‑0 flammability classification. The devices are RoHS‑compliant and support high‑temperature soldering up to 260 °C.
Maximum ratings specify a peak pulse power dissipation of 3 W, a peak forward surge current of 15 A (8.3 ms half‑sine) and an operating temperature range from –55 °C to +150 °C. Mechanical data list a JEDEC DO‑214AA case, solder‑plated terminals and a weight of 0.003 oz (0.093 g). Application notes describe thermal‑resistance calculations for reliable design under pulsed operation.
| Zener voltage range | 6.8 V – 100 V |
|---|---|
| Operating temperature range | -55 °C to +150 °C |
| Package type | JEDEC DO‑214AA |
| Weight | 0.003 oz (0.093 g) |
They are rated for operation from –55 °C up to +150 °C.
The devices are housed in a JEDEC DO‑214AA molded‑plastic case.
Available Zener voltages range from 6.8 V to 100 V.
