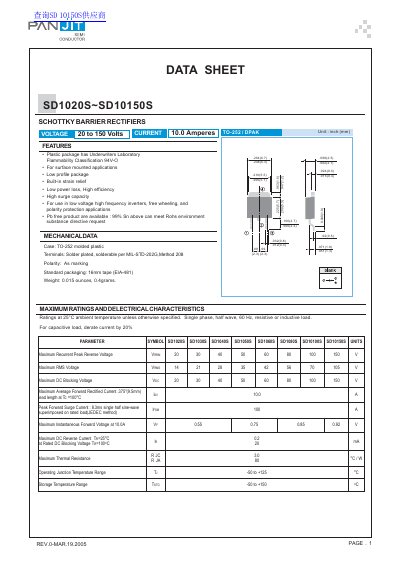

This document describes the features and characteristics of the SD1020S~SD10150S Schottky Barrier Rectifiers, including plastic package, surface mounted applications, low power loss, high efficiency, high surge capacity, etc.
This document is a semiconductor datasheet for the Panjit SD1020S through SD10150S series of Schottky Barrier Rectifiers. The devices are designed for surface-mounted applications with a low profile plastic package and built-in strain relief. They are suitable for use in low voltage, high frequency inverters, free-wheeling, and polarity protection circuits.
| Maximum Recurrent Peak Reverse Voltage | 20 to 150 V |
|---|---|
| Package Type | TO-252 molded plastic |
They are intended for use in low voltage high frequency inverters, free wheeling, and polarity protection applications.
The maximum average forward rectified current is rated at 10.0 Amperes.
