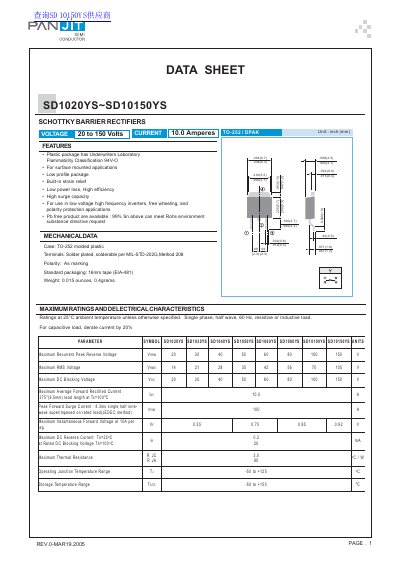

This data sheet provides detailed information on SD1020YS~SD10150YS Schottky diodes, including voltage, current, and package.
This document is a semiconductor datasheet for the PANJIT SD1020YS~SD10150YS series of Schottky Barrier Rectifiers. The devices are designed for surface-mounted applications and feature a low-profile plastic package with built-in strain relief. They are suitable for use in low voltage, high frequency inverters, free-wheeling, and polarity protection applications.
| Maximum Average Forward Rectified Current | 10.0 A |
|---|---|
| Peak Forward Surge Current | 400 A |
| Maximum Thermal Resistance | 80 °C/W |
| Operating Junction Temperature Range | -50 to +125 °C |
| Storage Temperature Range | -50 to +150 °C |
| Package Type | TO-252 molded plastic |
The maximum average forward rectified current is 10.0 A.
The peak forward surge current is 400 A for an 8.3ms single half sine wave.
The operating junction temperature range is from -50 to +125 °C.
