SD1020CS~SD10150CS SCHOTTKY BARRIER RECTIFIERS, this product has the characteristics of low power consumption, high efficiency, high surge capacity, suitable for low voltage high frequency inverters, free wheeling, polarity protection and other applications, this product has lead and lead-free two options.

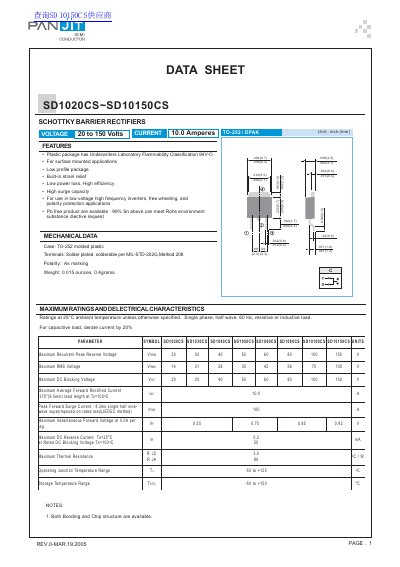

This document is a datasheet for PANJIT Schottky Barrier Rectifiers, specifically the SD1020CS through SD10150CS series. These components are designed for surface-mounted applications and feature a low profile plastic package with built-in strain relief. The product line offers voltages ranging from 20 to 150 volts and a maximum average forward rectified current of 10.0 amperes.
| Maximum Average Forward Rectified Current | 10.0 A |
|---|---|
| Voltage Range | 20 to 150 Volts |
| Package Type | TO-252 molded plastic |
| Operating Junction Temperature Range | -50 to +125 °C |
| Storage Temperature Range | -50 to +150 °C |
| Peak Forward Surge Current | 400 A |
The maximum average forward rectified current is 10.0 Amperes.
The operating junction temperature range is from -50 to +125 degrees Celsius.
Yes, Pb free products are available where 99% Sn above can meet RoHS environment.
