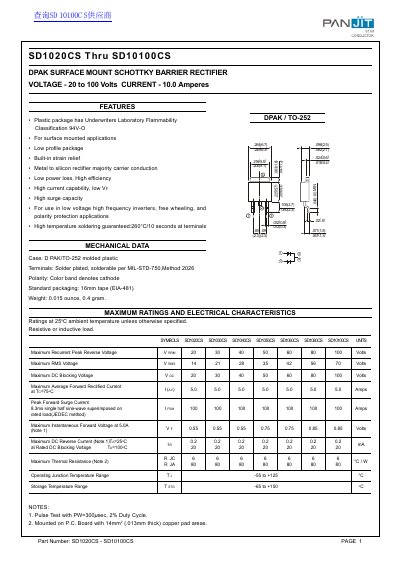

PANJIT SD1020CS Thru SD10100CS DPAK Surface Mount Schottky Barrier Rectifier Datasheet

This document describes the features and characteristics of the SD1020CS - SD10100CS series DPAK surface mount Schottky barrier rectifiers, suitable for low voltage high frequency inverters, free-wheeling, and polarity protection applications.

Brand: PANJIT
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 33 KB
Published: 07 August, 2012
Updated: 29 September, 2023
Model: SD1020CS
MD5 checksum: 71EB2091F0631DDD2360CE30486EB26C
PDF: PANJIT SD1020CS Thru SD10100CS DPAK Surface Mount Schottky Barrier Rectifier Datasheet PDF

About this manual

This document provides technical specifications for PANJIT SD1020CS through SD10100CS DPAK surface mount Schottky barrier rectifiers. The devices are designed for surface mounted applications with a low profile package and feature built-in strain relief.

What's inside

FEATURES
MECHANICAL DATA
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING AND CHARACTERISTIC CURVES

Specifications

Package Type	DPAK / TO-252
Maximum Thermal Resistance (ReJA)	80 C/W
Operating Junction Temperature Range	-55 to +125 °C

Frequently asked questions

What is the maximum average forward rectified current rating for these rectifiers?

The maximum average forward rectified current is 5.0 Amps at a temperature of 75°C.

What is the maximum peak forward surge current rating?

The maximum peak forward surge current is 100 Amps for an 8.3ms single half sine-wave.

What is the maximum operating junction temperature range?

The operating junction temperature range is from -55 to +125 °C.

Download PDF (33 KB)
