This document describes the features and characteristics of the SD1020CT to SD10100CT series Schottky barrier rectifiers, including voltage range, current capability, low power loss, high efficiency, high surge capacity, etc.

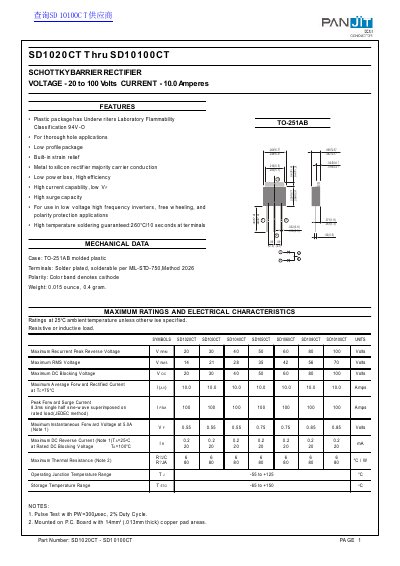

This datasheet covers the Schottky Barrier Rectifier series ranging from part number SD1020CT through SD10100CT. The devices are designed for low voltage, high frequency applications such as inverters, free-wheeling diodes, and polarity protection circuits.
Key features include a plastic package with Underwriters Laboratory Flammability Classification 94V-O, built-in strain relief, and majority carrier conduction for low power loss and high efficiency. The components are rated for a maximum average forward rectified current of 10.0 Amperes at an ambient temperature of 75°C.
| Voltage Range | 20 to 100 Volts |
|---|---|
| Current Rating | 10.0 Amperes |
| Package Type | TO-251AB molded plastic |
| Operating Junction Temperature Range | -55 to +125 oC |
The maximum average forward rectified current at a case temperature of 75°C is 10.0 Amps.
The device can handle a peak forward surge current of 100 Amps.
The rectifier operates within a junction temperature range of -55 to +125 oC.
