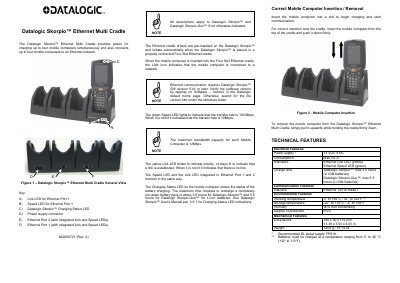

The Datalogic Skorpio™ Ethernet Multi Cradle is a multi-function charging cradle that provides power for up to four mobile computers simultaneously and also connects up to four mobile computers to an Ethernet network.
The Datalogic Skorpio™ Ethernet Multi Cradle provides power for charging up to four mobile computers simultaneously and also connects up to four mobile computers to an Ethernet network. It features integrated Link and Speed LEDs on the Ethernet ports to indicate connection status and transfer rates of either 10 Mbps or 100 Mbps.
| Power supply | 14VDC +5% |
|---|---|
| Consumption Max | 3.6 A |
| Charging time (Li ION) | max 3.5 hours |
| Working temperature | 0° to +50°C /32° to 122°F |
| Storage temperature | -20° to +70°C /-4° to 158°F |
| Dimensions | 340 x 90 x 115 mm |
The maximum time required to recharge a completely run-down battery pack is about 3.5 hours.
Ethernet communication requires Datalogic Skorpio™ SW version 5.47 or later.
The green Speed LED lights to indicate that the transfer rate is 100 Mbps, while unlit indicates 10Mbps.
