Datalogic Skorpio™ Single Cradle Ethernet is both a USB and an Ethernet communication adapter between the host computer and the Datalogic Skorpio™ mobile computer. It also functions as a battery charger, both for the mobile computer and the spare battery pack.
The Datalogic Skorpio Single Cradle Ethernet serves as a communication adapter between a host computer and the Datalogic Skorpio mobile computer. It supports both USB and Ethernet interfaces, selected via a switch on the device, and functions simultaneously as a battery charger for the mobile computer or spare battery pack.
| Power supply range | 12 to 14 VDC + 5% |
|---|---|
| Max consumption | 1.6 A with mobile computer inserted |
| Charge time (Skorpio) | 3h 30 mins |
| Charge time (Skorpio-GUN) | 5 h |
| Ethernet Interface | 10/100 Base T |
| USB Interface | USB 1.1 version |
| Dimensions (mm) | 102 x 154 x 108 mm |
| Weight | 462 g/ 16,30 oz (without cables) |
| Working temperature | 0° to +50°C / 32° to 122°F |
| Degree of protection | IP20 |

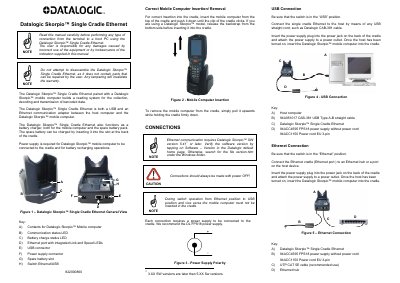

The manual recommends using the DL FPS18 power supply.
Yes, the spare battery can be charged by inserting it into the slot at the back of the cradle.
A blinking yellow LED indicates that there is activity on the network link.
