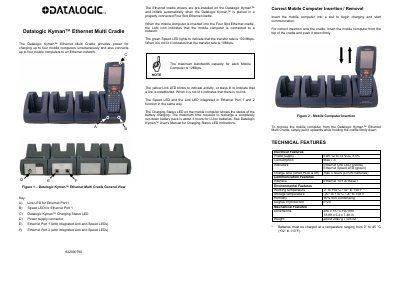

The Datalogic Kyman™ Ethernet Multi Cradle is a member of the Datalogic Kyman™ series, which provides power for charging up to four mobile computers simultaneously and also connects up to four mobile computers to an Ethernet network.
The Datalogic Kyman Ethernet Multi Cradle is designed to provide power for charging up to four mobile computers simultaneously while connecting them to an Ethernet network. The device features integrated Ethernet ports with Link and Speed LEDs to indicate network status and transfer rates, as well as a Charging Status LED for battery monitoring.
| Power supply | 12 to 14 VDC + 5% |
|---|---|
| Consumption | Max 7A |
| Charging time | max 3 hours |
| Interface | Ethernet 10/100 Base T |
| Working temperature | 0° to +50°C |
| Storage temperature | -20° to +70°C |
| Humidity | 90% non condensing |
| Degree of protection | IP20 |
| Dimensions | 480 x 137 x 190 mm |
| Weight | about 2940 g |
The Datalogic Kyman Ethernet Multi Cradle provides power for charging up to four mobile computers simultaneously.
The green Speed LED lights to indicate that the transfer rate is 100 Mbps.
The maximum time required to recharge a completely run-down battery pack is about 3 hours.
It is recommended not to connect more than 4 cradles in order to maintain the optimal baud rate.
