Extech 475040/44 Digital Forge Gauges are high-precision, reversible display force gauges, which features mass capacity (kg, lb, oz and N), overload, low battery and advanced function indication, selectable fast/slow response. 475040's measurement capacity is 5000g, 176 oz, 49N, and 475044's measurement capacity is 20 kg, 44 lbs, 196N.

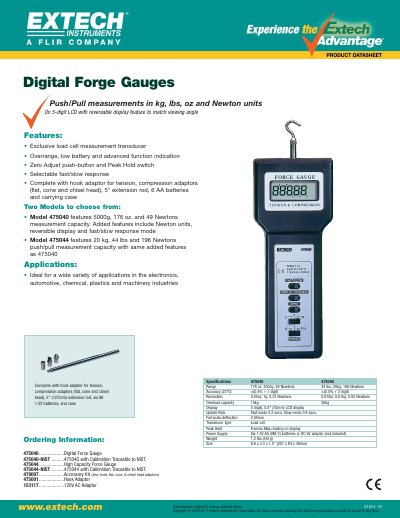

This document provides technical specifications for the Extech 475040 Digital Force Gauge and the Extech 475044 High Capacity Force Gauge. Both models feature a 5-digit LCD with a reversible display to match viewing angles and support push/pull measurements in kg, lbs, oz, and Newtons.
The document details specific performance metrics for each model, including range, accuracy, resolution, and update rates. It also lists the included accessories such as hook adaptors, compression adaptors (flat, cone, and chisel head), an extension rod, batteries, and a carrying case.
| Range (Model 475040) | 176 oz, 5000g, 49 Newtons |
|---|---|
| Range (Model 475044) | 20 kg, 44 lbs and 196 Newtons |
| Accuracy (23°C) Model 475040 | ±(0.4% + 1 digit) |
| Resolution Model 475040 | 0.05oz, 1g, 0.01 Newtons |
| Display Type | 5 digits, 0.4" (10mm) LCD display |
| Power Supply | Six 1.5V AA batteries or DC 9V adaptor |
The gauge supports push/pull measurements in kg, lbs, oz and Newton units.
The overload capacity for Model 475040 is 10kg.
