Extech 475055 220lbs (100kg) Force Gauge is a high-performance force measurement instrument produced by Extech Company. It has a measurement range of 0.05-100kg (0.05-220lbs, 0.2-980N), a measurement accuracy of 0.5%, Peak hold and Zero functions, and positive/reverse display function, and can be connected to PC for data analysis.

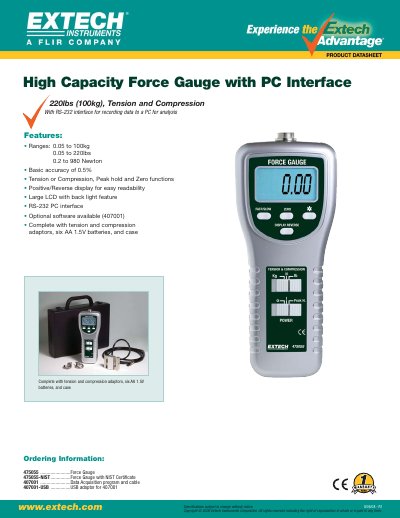

The Extech Instruments 475055 is a high capacity force gauge designed for measuring both tension and compression forces. It features an RS-232 interface that allows users to record data directly to a PC for analysis using optional software.
Key specifications include measurement ranges of 0.05 to 100kg, 0.05 to 220lbs, or 0.2 to 980 Newtons, with a basic accuracy of 0.5%. The device includes functions such as peak hold and zeroing, along with positive/reverse display for easy readability.
| Measurement Ranges | 0.05 to 100kg, 0.05 to 220lbs, 0.2 to 980 Newton |
|---|---|
| Basic Accuracy | 0.5% |
| Interface | RS-232 |
The gauge features an RS-232 interface for connecting to a PC.
Yes, optional software (model 407001) is available for data analysis.
