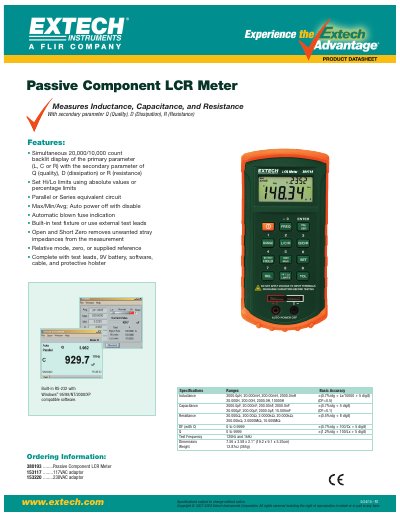

Extech 380193 Passive Component LCR Meter measures inductance, capacitance, and resistance with secondary parameter Q (quality), D (dissipation), or R (resistance).
The Extech 380193 is a passive component LCR meter designed to measure Inductance (L), Capacitance (C), and Resistance (R). It features a simultaneous backlit display for the primary parameter along with secondary parameters such as Quality factor (Q), Dissipation factor (D), or Resistance (R). The device supports both parallel and series equivalent circuit modes.
| Primary Parameter Ranges (Inductance) | 2000.0μH to 10000H |
|---|---|
| Primary Parameter Ranges (Capacitance) | 2000.0pF to 10.000mF |
| Primary Parameter Ranges (Resistance) | 20.000Ω to 10.000MΩ |
| Test Frequency | 120Hz and 1kHz |
| Dimensions | 7.56 x 3.58 x 2.1 inches (19.2 x 9.1 x 5.25cm) |
| Weight | 12.87oz (365g) |
The meter measures Q (Quality), D (Dissipation), or R (Resistance) as secondary parameters.
Yes, it is complete with test leads, a 9V battery, software, cable, and a protective holster.
