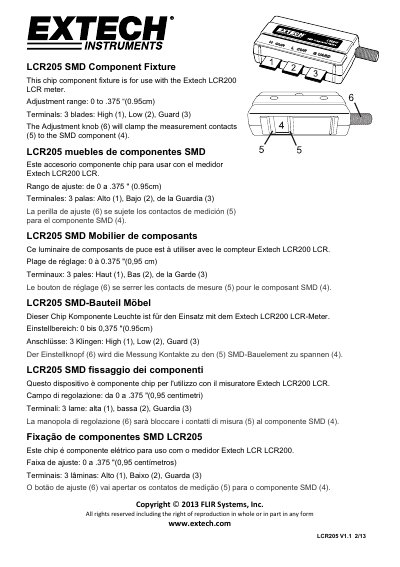

The LCR205 is a SMD component fixture for use with the Extech LCR200 LCR meter. It has three blades (High, Low, Guard) and a adjustment knob (clamps the measurement contacts to the SMD component).
The Extech LCR205 SMD Component Fixture is designed for use with the Extech LCR200 LCR meter. It is intended to hold and measure surface mount devices (SMD). The fixture features an adjustment range of 0 to 0.375 inches (0.95 cm).
| Compatible Meter | Extech LCR200 LCR meter |
|---|---|
| Adjustment Range | 0 to 0.375 inches (0.95 cm) |
| Terminals | 3 blades: High, Low, Guard |
This fixture is designed for use with the Extech LCR200 LCR meter.
The adjustment range is 0 to .375 inches (0.95cm).
The fixture has three terminals labeled High, Low, and Guard.
