The RC100 is a multimeter for measuring surface mount components. It can measure resistance, capacitance and diodes.

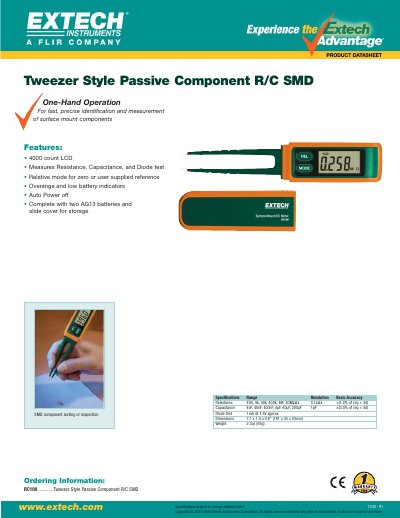

The EXTECH RC100 is a tweezer-style passive component R/C SMD meter designed for fast, precise identification and measurement of surface mount components. It features one-hand operation and includes a 4000 count LCD display.
| Display | 4000 count LCD |
|---|---|
| Resistance Range | 400, 4k, 40k, 400k, 4M, 40MQ |
| Capacitance Range | 4nF, 40nF, 400nF, 4p, 40pF, 200uF |
| Diode Test | 1mA @ 1.5V approx |
| Dimensions | 181 x 35 x 20mm |
| Weight | 65g |
It is designed for the fast and precise identification and measurement of surface mount components.
The device measures resistance, capacitance, and performs a diode test.
The unit measures 7.1 x 1.4 x 0.8 inches, which is equivalent to 181 x 35 x 20mm.
