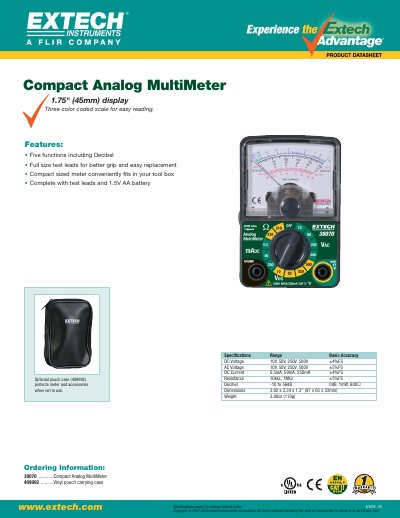

The Extech 38070 Compact Analog MultiMeter is a five-function instrument featuring a 1.75-inch display with three color-coded scales. It includes full-size test leads and a 1.5V AA battery, designed to fit conveniently in a toolbox.
| Functions | Five functions including Decibel |
|---|---|
| Display Size | 1.75" (45mm) |
| DC Voltage Range | 10V, 50V, 250V, 500V |
| AC Voltage Range | 10V, 50V, 250V, 500V |
| DC Current Range | 0.5mA, 50mA, 250mA |
| Resistance Range | 10k Ω, 1MΩ |
| Decibel Range | -10 to 56dB |
| Dimensions | 3.82 x 3.34 x 1.3" (97 x 65 x 33mm) |
| Weight | 3.88oz (110g) |
The meter performs five functions, including Decibel measurement.
The maximum DC voltage range is 500V.
The dimensions are 3.82 x 3.34 x 1.3 inches.
