This document introduces a Pen MultiMeter produced by Extech Instruments Corporation, which has 8 functions, including current and logic testing. The product features a large 3200 count high contrast LCD display, auto power off function, data hold and range hold functions, as well as overload and low battery indication. It is designed for field service troubleshooting of logic and general AC/DC circuits, as well as R&D and circuit board troubleshooting.

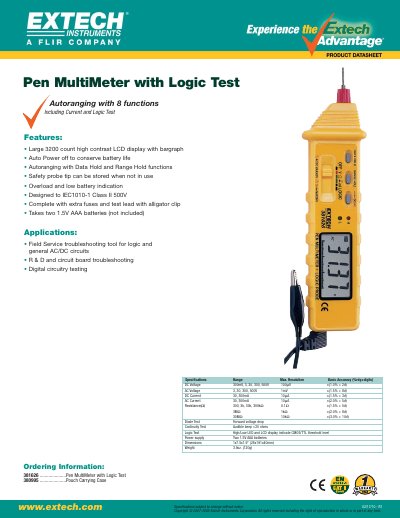

This datasheet describes the EXTECH Pen MultiMeter with Logic Test (Model 381626), a compact instrument designed for field service troubleshooting and R&D circuit board testing. It features autoranging across 8 functions, including DC/AC voltage and current, resistance, diode testing, continuity, and logic testing for CMOS/TTL levels.
| Display | Large 3200 count high contrast LCD display with bargraph |
|---|---|
| Power Supply | Two 1.5V AAA batteries |
| DC Current Range | 30mA to 300mA |
| AC Current Range | 30mA to 300mA |
| Logic Test | High/Low LED and LCD display indicate CMOS/TTL threshold level |
| Dimensions | 1x7.5x1.9 inches (26x191x40mm) |
No, the device comes with extra fuses and a test lead with an alligator clip, but the batteries are not included.
The device measures up to a maximum of 500V for DC voltage.
The unit requires two 1.5V AAA batteries to operate.
The dimensions are 1x7.5x1.9 inches or 26x191x40mm.
