This document is a manual for COM Ω OFF NCV AC DC V SENS. PEN MULTIMETER+VOLTAGE DETECTOR 381676. The product is a multifunctional voltage detector with features such as non-contact voltage detection, AC/DC voltage measurement, resistance measurement, diode testing, and continuity testing. It features a large 2000 count high contrast LCD display, non-contact voltage detection with visible and audible alarm, autoranging with data hold, range hold, and maximum hold features. The product also has auto power off, overload and low battery indication. It meets IEC1010-1; CAT III-600V standards. It comes complete with test lead with alligator clips, two 1.5V AAA batteries, and a carrying case. The product is suitable for AC live circuit detection, field service troubleshooting tool for AC/DC circuits, R&D and circuit board troubleshooting, and digital circuitry testing.

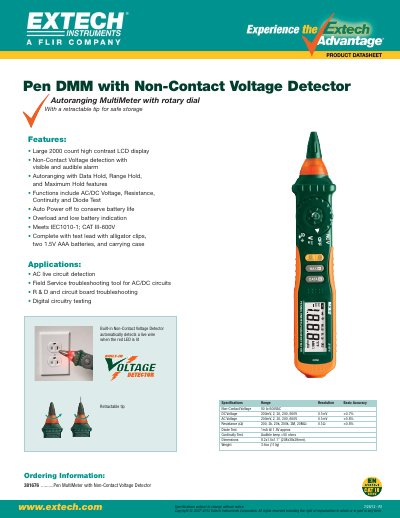

The EXTECH 381676 is an Autoranging MultiMeter with a rotary dial designed for field service troubleshooting and digital circuitry testing. It features a built-in Non-Contact Voltage Detector that provides both visible LED and audible alarm alerts when detecting live wires in AC circuits.
Key specifications include a large 2000 count high contrast LCD display, autoranging functionality with Data Hold, Range Hold, and Maximum Hold features, and an auto power-off function to conserve battery life. The device measures DC Voltage (up to 600V), AC Voltage (up to 600V), Resistance, Diode Test, and Continuity.
| Display Count | 2000 count high contrast LCD display |
|---|---|
| Non-Contact Voltage Range | 50 to 600VAC |
| Resistance Ranges | 200, 2k, 20k, 200k, 2M, 20MQ |
| Continuity Test Limit | <50 ohms |
| Dimensions | 8.2x1.5x1.1" (208x38x29mm) |
| Weight | 3.9 oz (110g) |
The device meets IEC1010-1 standards and is rated for CAT III-600V.
The package includes a test lead with alligator clips, two 1.5V AAA batteries, and a carrying case.
It automatically detects a live wire when the red LED is lit on the device.
