The Extech model 38073 Analog Multimeter is capable of measuring AC/DC Voltage, DC Current, Resistance, dB, and has battery test, displaying measurements in analog format.

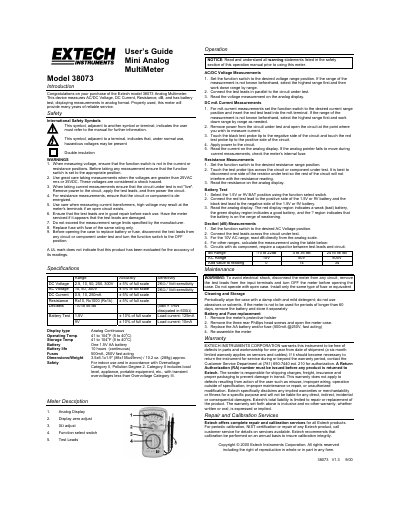

This document is the User's Guide for the Extech Model 38073 Mini Analog Multimeter. It provides instructions on using the device to measure AC/DC voltage, DC current, resistance, and decibels, as well as testing batteries. The guide includes important safety warnings and symbols to ensure proper and safe usage.
| Display type | Analog |
|---|---|
| Operating Temp | 41 to 104oF (5 to 40oC) |
| Battery | One 1.5V AA battery |
| Battery life | 10 hours (continuous) |
| Fuses | 500mA, 250V fast acting |
| Dimensions/Weight | 3.5x6.1x1.9" (88x155x49mm) / 10.2 oz. (288g) approx. |
A UL mark does not indicate that this product has been evaluated for the accuracy of its readings.
Extech warrants the instrument to be free of defects in parts and workmanship for one year from date of shipment.
Extech recommends that calibration be performed on an annual basis to insure calibration integrity.
