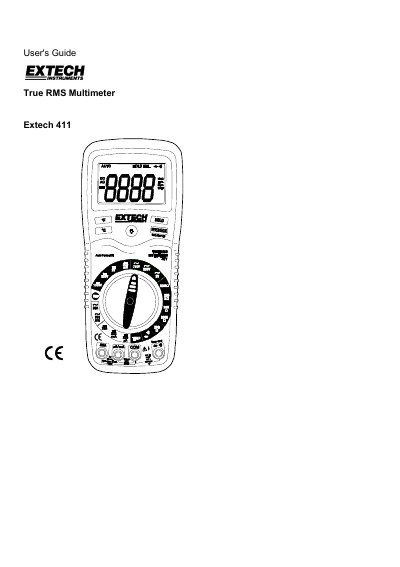

Extech 411 True RMS Multimeter User's Guide

Extech 411 True RMS Multimeter User's Guide, introduces the features and characteristics of the product, usage methods and precautions.

Brand: EXTECH
Category: multimeter
Document type: User Manual
Language: English
Pages: 14
File format: PDF
File size: 549 KB
Published: 01 August, 2012
Updated: 30 September, 2023
MD5 checksum: 44CA13D52340AFCF93B3294A387013C3
PDF: Extech 411 True RMS Multimeter User's Guide PDF

About this manual

This document is the User's Guide for the Extech 411 True RMS Multimeter (part number EX411). It provides instructions on the safe operation and use of the device for measuring AC/DC voltage, AC/DC current, resistance, diode testing, continuity, and thermocouple temperature. The guide includes important safety warnings, such as avoiding measurement of voltages exceeding 1000VAC/VDC on the COM input and ensuring capacitors are discharged before testing.

What's inside

Safety Instructions
Controls and Jacks
DC Voltage Measurements
AC Voltage Measurements
DC Current Measurements
AC Current Measurements
Resistance Measurements
Continuity Check
Diode Test

Specifications

Input Protection Limits (VAC)	750V
Input Protection Limits (V DC or V AC)	1000V DC/AC
DC Current Range	200mA
DC Current Range	20A
Resistance/Continuity Limit	250Vrms for 15sec max
Display	2000 count LCD

Frequently asked questions

What is the maximum input voltage for AC measurements?

The maximum input for AC voltage is 750V.

What is the maximum input voltage for DC or AC voltage?

The maximum input for DC or AC voltage is 1000V DC/AC.

How long can you measure DC current on the 20A scale?

Do not make current measurements on the 20A scale for longer than 30 seconds.

What indicates an open circuit during a continuity check?

The display will indicate '1' if the circuit is open.

Download PDF (549 KB)
