The Extech DL160 is a dual input true RMS AC voltage/current data logger produced by Extech. It can simultaneously measure two AC voltage inputs or two AC current inputs or one AC voltage and one AC current input, with a maximum sampling rate of 256000 times/second. The measurement data can be downloaded to the PC via the USB interface and analyzed using the accompanying software or exported to an electronic spreadsheet.

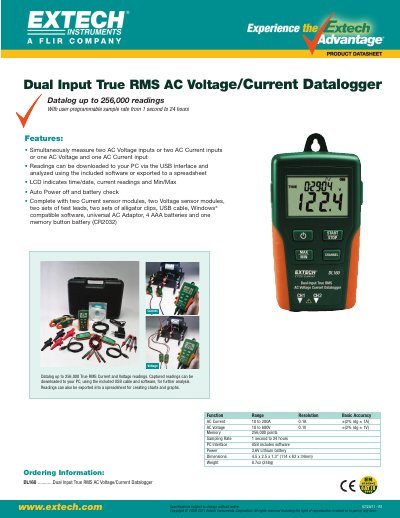

The EXTECH DL160 is a Dual Input True RMS AC Voltage/Current Datalogger designed for measuring and recording electrical parameters. It allows users to simultaneously measure two AC Voltage inputs, two AC Current inputs, or one of each. Readings can be stored up to 256,000 points with user-programmable sample rates ranging from 1 second to 24 hours.
Data captured by the DL160 can be downloaded to a PC via a USB interface for analysis using included software or exported to spreadsheets. The device includes an LCD display showing time/date and current readings, along with Min/Max values. It comes complete with sensor modules, test leads, alligator clips, a USB cable, software, power adapters, and batteries.
| AC Current Function Range | 10 to 200A |
|---|---|
| AC Voltage Function Range | 10 to 600V |
| Memory Capacity | 256,000 points |
| Sampling Rate Range | 1 second to 24 hours |
| PC Interface | USB includes software |
| Power Source | 3.6V Lithium battery |
| Dimensions | 45x2.5x1.3" (114 x 63 x 34mm) |
| Weight | 8.702 oz (248g) |
The device can log up to 256,000 True RMS Current and Voltage readings.
The user can program a sample rate from 1 second to 24 hours.
