This document describes a product called Bank Number VREF Bank Pin. The product has multiple pins for different functions, including configuration and optional functions.

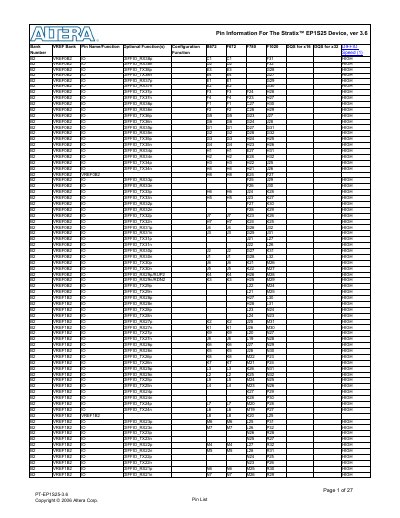

This document provides a detailed pin list for the Stratix™ EP1S25 device, version 3.6. It includes pin names, functions, optional functions, and configuration settings for various banks within the device.
The data is organized by bank and function, specifying parameters such as VREF, speed, and differential I/O (DIFFIO) configurations. It also lists specific pin assignments for clock inputs, PLLs, and general-purpose I/Os.
The document is version 3.6.
The document number is PT-EP1S25-3.6.
