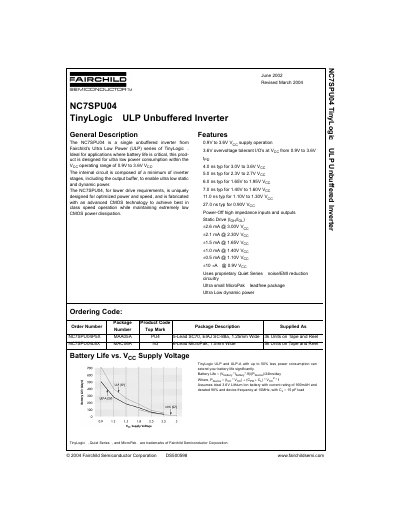

The NC7SPU04 is a single unbuffered inverter from Fairchild’s Ultra Low Power (ULP) series of TinyLogic. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V VCC. The internal circuit is composed of a minimum of inverter stages, including the output buffer, to enable ultra low static and dynamic power. The NC7SPU04, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve best in class speed operation while maintaining extremely low CMOS power dissipation.
The NC7SPU04 is a single unbuffered inverter belonging to Fairchild's TinyLogic® Ultra Low Power (ULP) series. It is specifically engineered for applications where battery life is critical, offering ultra-low power consumption within an operating voltage range of 0.9V to 3.6V.
The device utilizes advanced CMOS technology and proprietary Quiet Series™ noise/EMI reduction circuitry to achieve best-in-class speed while maintaining extremely low static and dynamic power dissipation. It features overvoltage-tolerant I/Os at 3.6V and is available in a 5-lead SC70 package or a 6-lead MicroPak leadfree package.
| Supply Voltage (Vcc) | 0.9V to 3.6V |
|---|---|
| Operating Temperature Range | -65°C to +150°C (Storage) |
| Static Drive Current (Iop/IoL) | 42.6 mA @ 3.00V |
The device operates with a supply voltage (Vcc) ranging from 0.9V to 3.6V.
Yes, it features 3.6V overvoltage tolerant I/Os even when Vcc is between 0.9V and 3.6V.
