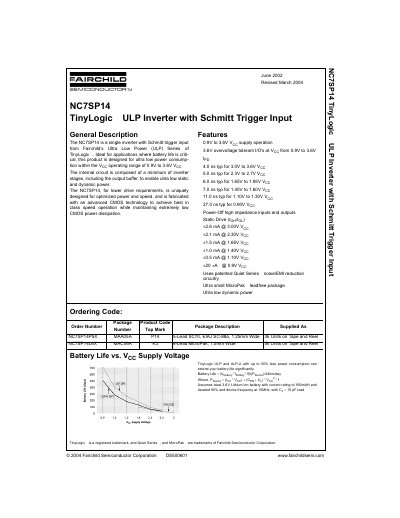

The NC7SP14 is a single inverter with Schmitt trigger input from Fairchild's Ultra Low Power (ULP) Series of TinyLogic. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V VCC. The internal circuit is composed of a minimum of inverter stages, including the output buffer, to enable ultra low static and dynamic power. The NC7SP14, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve best in class speed operation while maintaining extremely low CMOS power dissipation.
The NC7SP14 is a single inverter with Schmitt trigger input from Fairchild's Ultra Low Power (ULP) Series of TinyLogic. It is designed for applications where battery life is critical, offering ultra-low power consumption within a supply voltage range of 0.9V to 3.6V. The internal circuit uses a minimum of inverter stages, including an output buffer, to enable ultra-low static and dynamic power.
| Supply Voltage | 0.9V to 3.6V |
|---|---|
| Propagation Delay (Typ) | 4.0 ns |
| Static Drive Current | 42.6 mA |
| Input Capacitance | 2.0 pF |
| Storage Temperature | -65°C to +150°C |
The device operates with a supply voltage from 0.9V to 3.6V.
The typical propagation delay is 4.0 ns for voltages between 3.0V and 3.6V.
