TMS27L08 is a storage chip with high-speed read and write and low power consumption. It is suitable for various electronic devices and can store a large amount of data.

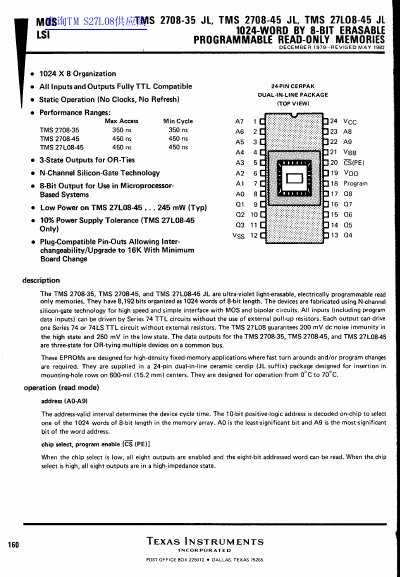

This document provides technical specifications for the TMS 2708-35 JL, TMS 2708-45 JL, and TMS 27L08-45 JL devices, which are ultra-violet light-erasable, electrically programmable read-only memories (EPROMs). These devices feature a 1024-word by 8-bit organization and are fabricated using N-channel silicon-gate technology for high-speed operation and simple interface with MOS and bipolar circuits.
| Organization | 1024 words x 8 bits |
|---|---|
| Package | 24-pin CERPAK |
| Operating Temperature | 0°C to 70°C |
| Access Time (TMS 2708-45) | 450 ns |
| Power Dissipation (Typical) | 245 mW |
The devices have 8,192 bits organized as 1024 words of 8-bit length.
Yes, all inputs can be driven by Series 74 TTL circuits without the use of external pull-up resistors.
