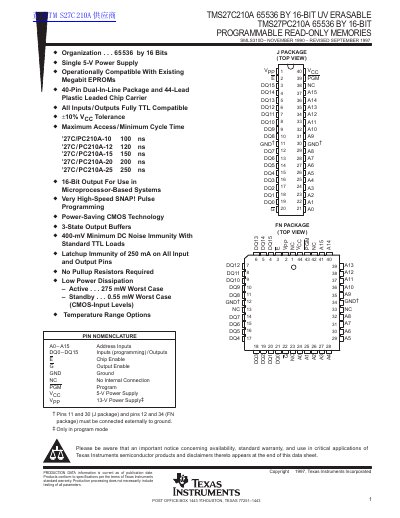

This document describes the features and characteristics of TMS27C210A and TMS27PC210A, which are 65536x16-bit UV erasable and programmable read-only memories. They support a single 5V power supply and are operationally compatible with existing megabit EPROMs. They come in various packages and have TTL compatible inputs/outputs. They feature high-speed SNAP! pulse programming and power-saving CMOS technology. The output buffers are 3-state. No pullup resistors are required. They have low power dissipation and optional temperature range options.
This document describes the TMS27C210A series of 65536 by 16-bit ultraviolet-light erasable electrically programmable read-only memories (EPROMs) and the TMS27PC210A series of one-time programmable (OTP) PROMs. Both devices are fabricated using power-saving CMOS technology for high-speed operation and simple interface with MOS and bipolar circuits.
| Memory Capacity | 65536 by 16-bit (1048576-bit) |
|---|---|
| Technology | CMOS |
| Operating Voltage | 5-V |
| Programming Voltage | 13-V |
| Access Time (10ns variant) | 100 ns |
| Access Time (25ns variant) | 250 ns |
| Latchup Immunity | 250 mA |
| Active Supply Current | 50 mA |
The signature code is 97AB, where 97 is the manufacturer's code and AB is the device code.
It can program in a nominal time of seven seconds.
The recommended minimum exposure dose is 15-Wes/cm2.
