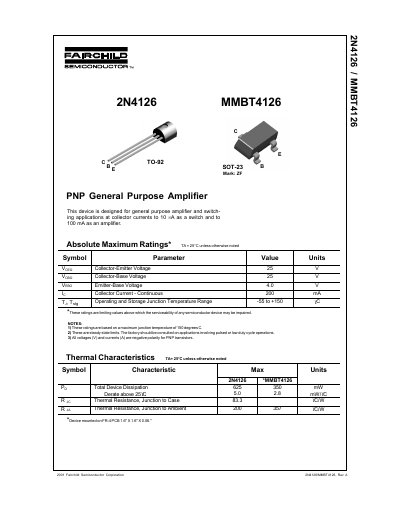

2N4126 MMBT4126 PNP General Purpose Amplifier is a PNP transistor designed for general purpose amplifier and switching applications. Its features are high integration, low cost and low power consumption.
The document describes the 2N4126/MMBT4126, a PNP general purpose amplifier designed for amplifier and switching applications. It supports collector currents up to 10 µA for switching and up to 100 mA for amplification. The device is available in SOT-223, SOT-23, and TO-92 packages.
| Collector-Emitter Voltage | 25 V |
|---|---|
| Collector-Base Voltage | 25 V |
| Emitter-Base Voltage | 4.0 V |
| Collector Current - Continuous | 200 mA |
| Operating Junction Temperature | -55 to +150 °C |
| Thermal Resistance Junction to Case | 83.3 °C/W |
The device supports collector currents up to 10 µA for switching applications and up to 100 mA for amplifier applications.
The maximum operating and storage junction temperature range is from -55 to +150 °C.
