The KSP94 is a high voltage PNP type transistor manufactured by Fairchild Semiconductor Corporation. Its maximum collector-emitter voltage is -400V, maximum collector-base voltage is -400V, maximum emitter-base voltage is -6V, maximum collector current is -300mA, maximum collector power dissipation is 625mW, maximum junction temperature is 150°C, and maximum storage temperature is -55~150°C.

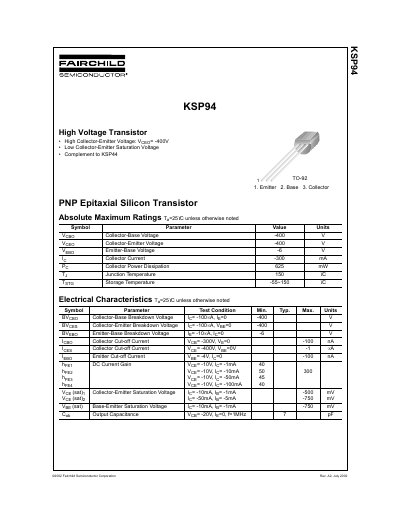

This document provides the design specifications for the Fairchild Semiconductor KSP94, a high voltage PNP epitaxial silicon transistor. It serves as a reference for product development and full production, containing absolute maximum ratings and electrical characteristics.
| Collector-Emitter Voltage | -400 V |
|---|---|
| Collector Current | -300 mA |
| Collector Power Dissipation | 625 mW |
| Junction Temperature | 150 °C |
The maximum junction temperature is 150 °C.
The device has a maximum collector-emitter voltage rating of -400 V.
The maximum collector current is -300 mA.
The maximum junction temperature is 150 °C.
