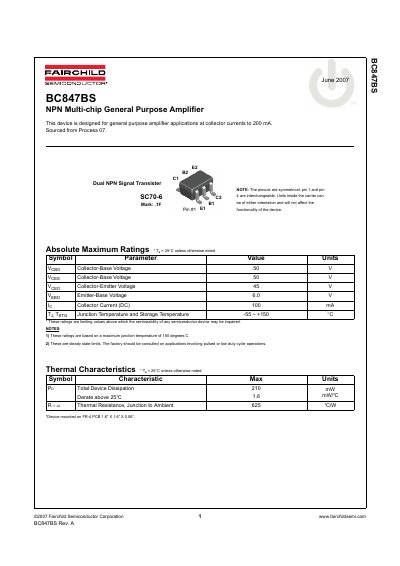

BC847BS is a NPN Multi-chip General Purpose Amplifier produced by Fairchild Semiconductor Corporation. It can be applied to general purpose amplifier applications at collector currents up to 200 mA
This document is a datasheet for the Fairchild Semiconductor BC847BS, a dual NPN signal transistor designed for general purpose amplifier applications with collector currents up to 200 mA. The device is available in an SC70-6 package and features symmetrical pinouts where pins 1 and 4 are interchangeable.
The datasheet provides comprehensive electrical characteristics, including off characteristics such as collector-emitter breakdown voltage and on characteristics like DC current gain and saturation voltage. It also lists absolute maximum ratings for voltages and currents, along with thermal characteristics for device mounted on FR-4 PCB.
| Collector Current (DC) | 100 mA |
|---|---|
| Junction Temperature | -55 ~ +150 °C |
| Total Device Dissipation | 210 mW |
| Collector-Base Voltage | 50 V |
| Collector-Emitter Voltage | 45 V |
| DC Current Gain | 200 to 450 |
| Package Type | SC70-6 |
The device is designed for collector currents up to 200 mA, with a DC rating of 100 mA.
Yes, the pinouts are symmetrical, meaning pin 1 and pin 4 are interchangeable.
