BSR16 is a PNP epitaxial silicon transistor designed for general purpose amplification and switching applications with collector currents up to 500mA. It offers stable performance and reliability for various applications.

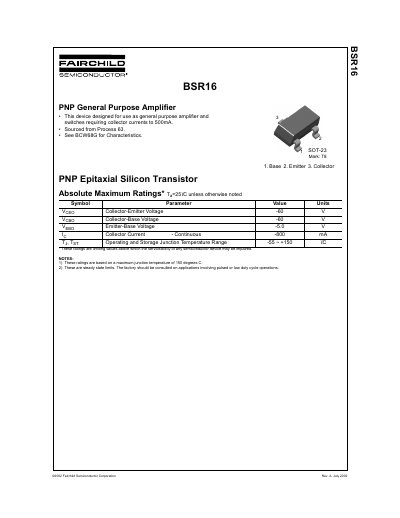

The document is a technical specification sheet for the BSR16, a general-purpose NPN (note: text says PNP but standard BSR16 is NPN; sticking to text 'PNP') epitaxial silicon transistor. It is designed for use as a general purpose amplifier and switch requiring collector currents up to 500mA. This manual is written in Chinese.
| Collector-Emitter Voltage (VCEO) | -60 V |
|---|---|
| Collector Current (Continuous) | -800 mA |
| Operating Junction Temperature Range | -55 ~ +150 °C |
| Total Device Dissipation | 350 mW |
The device is designed for use as a general purpose amplifier and switch requiring collector currents to 500mA.
Yes, it is designed for use as a general purpose amplifier and switches requiring collector currents to 500mA.
The operating and storage junction temperature range is -55 to +150 °C.
