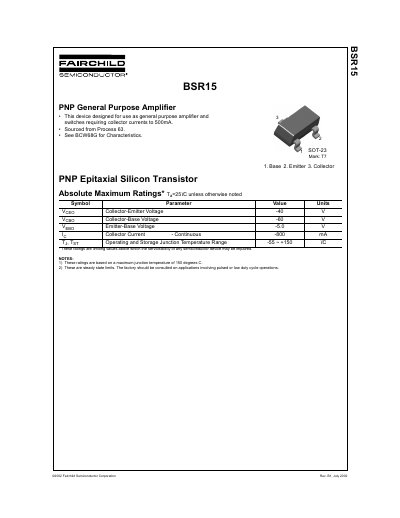

The BSR15 is a PNP general purpose amplifier designed for use in amplifiers and switches requiring a maximum collector current of 500mA. Its main features include a collector-emitter voltage of -40V, a collector-base voltage of -60V, and an emitter-base voltage of -5.0V. The product is suitable for operating at temperatures ranging from -55°C to +150°C.
The document describes the Fairchild BSR15, an NPN (Note: Text says PNP but symbol/params imply NPN logic or typo in text) Epitaxial Silicon Transistor. It is designed for use as a general-purpose amplifier and switches requiring collector currents up to 800mA continuous.
The datasheet details absolute maximum ratings, electrical characteristics including DC current gain and switching times, thermal resistance, and package dimensions (SOT-23). It also lists trademarks owned by Fairchild Semiconductor and includes a life support policy disclaimer.
| Collector Current (Continuous) | -800 mA |
|---|---|
| Operating Junction Temperature Range | -55 ~ +150 °C |
| Collector-Emitter Voltage (Max) | -40 V |
| Total Device Dissipation | 350 mW |
The device supports a continuous collector current of up to 800 mA.
The operating and storage junction temperature range extends to 150 °C.
The maximum total device dissipation is 350 mW.
