The document describes the features and characteristics of a product.

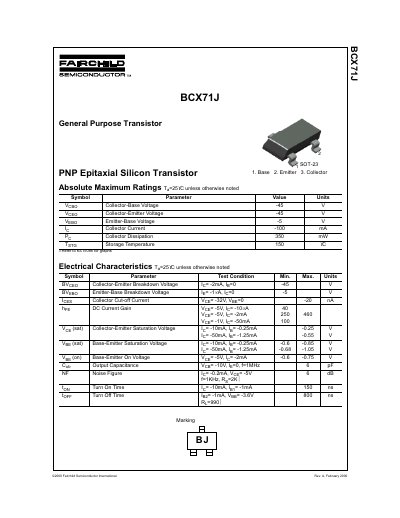

This document provides the design specifications for the Fairchild Semiconductor BCX71J, a general-purpose PNP epitaxial silicon transistor. It lists absolute maximum ratings such as a collector-emitter voltage of -45V and a collector current of -100mA, along with electrical characteristics including DC current gain and saturation voltages.
| Collector-Emitter Voltage | -45 V |
|---|---|
| Emitter-Base Voltage | 5 V |
| Collector Current | -100 mA |
| Collector Dissipation | 350 mW |
| Storage Temperature | 150 °C |
| Turn On Time | 150 ns |
| Turn Off Time | 800 ns |
The maximum collector current is -100 mA.
The collector-emitter breakdown voltage is 45 V.
