BCX17 is a PNP general purpose amplifier, designed for general purpose amplifier and switching application at current 0.5A.
The document describes the Fairchild Semiconductor BCX17, a PNP General Purpose Amplifier sourced from process 78. It is designed for general purpose amplifier and switching applications at currents of 0.5A or less.

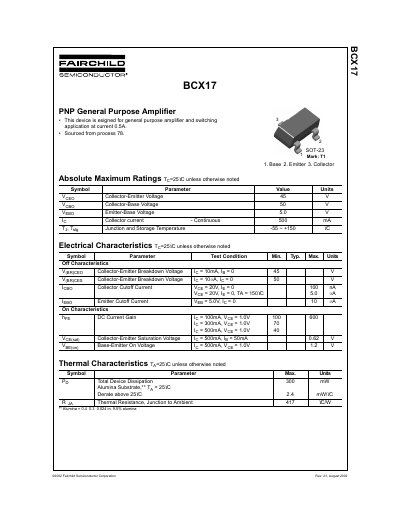

The datasheet details absolute maximum ratings, electrical characteristics including off and on conditions, thermal characteristics, and package dimensions for the SOT-23 package.
| Collector-Emitter Voltage (VCEO) | 45 V |
|---|---|
| Collector-Base Voltage (VCBO) | 50 V |
| Emitter-Base Voltage (VEBO) | 5.0 V |
| Collector Current (Continuous) | 500 mA |
| Junction and Storage Temperature | -55 ~ +150 °C |
| Total Device Dissipation (Pp) | 300 mW |
The device supports a continuous collector current of up to 500 mA.
The total device dissipation must not exceed 300 mW when the junction temperature is 25°C.
The package width must be at least 0.96 mm according to the provided drawings.
