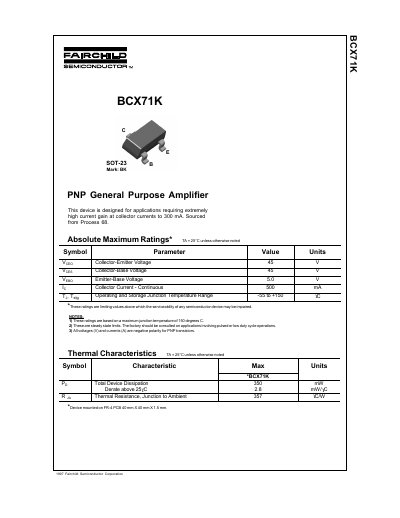

Fairchild Semiconductor BCX71K PNP General Purpose Amplifier Datasheet

BCX71K is a PNP General Purpose Amplifier from Fairchild Semiconductor Corporation.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 66 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: 54CE69FBC7B2D8BB874C1FB5626BA723
PDF: Fairchild Semiconductor BCX71K PNP General Purpose Amplifier Datasheet PDF

About this manual

This document is a datasheet for the Fairchild Semiconductor BCX71K, a PNP General Purpose Amplifier. The device is designed for applications requiring extremely high current gain at collector currents up to 300 mA. It is sourced from Process 68 and features a maximum junction temperature rating of 150°C.

What's inside

Absolute Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Characteristics
Tradeemarks
Disclaimer
Life Support Policy
Product Status Definitions

Specifications

Total Device Dissipation	350 mW

Frequently asked questions

What is the maximum collector current for the BCX71K?

The device is designed for applications requiring extremely high current gain at collector currents to 300 mA.

What is the maximum junction temperature?

The maximum junction temperature is 150 degrees C.
