The BCW68G is a device designed for general purpose amplifier and switching applications at currents up to 500 mA.

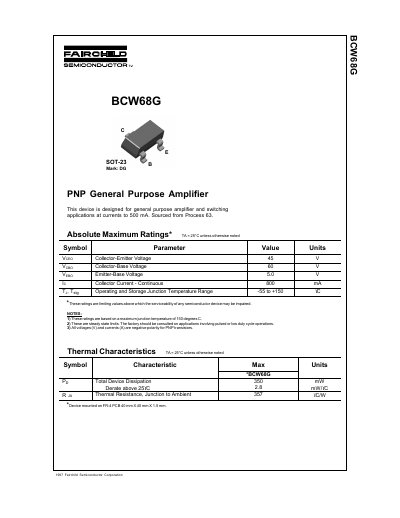

The document is a technical datasheet for the BCW68G, a PNP General Purpose Amplifier designed for switching applications with currents up to 500 mA. It details absolute maximum ratings such as collector-emitter voltage of 45 V and continuous collector current of 800 mA.
| Collector-Emitter Voltage (Vceo) | 45 V |
|---|---|
| Collector Current - Continuous | 800 mA |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation (Pp) | 350 mw |
The device supports a maximum continuous collector current of 800 mA.
The maximum collector-emitter voltage is 45 V, and the maximum collector-base voltage is 60 V.
The device operates and stores within a junction temperature range of -55 to +150 °C.
