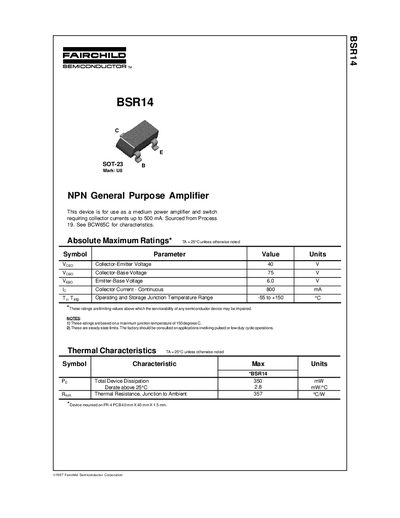

BSR14 is a NPN general purpose amplifier that can be used as a medium power amplifier and switch requiring collector currents up to 500 mA.
The document describes the BSR14, an NPN general purpose amplifier designed for use as a medium power amplifier and switch. It supports collector currents up to 500 mA and is available in a SOT-23 package with a US marking.
The datasheet details absolute maximum ratings such as a collector-emitter voltage of 40 V and a collector current of 800 mA. It also lists electrical characteristics including DC current gain, saturation voltages, and small signal parameters like current gain-bandwidth product and capacitance.
| Collector Current - Continuous | 800 mA |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation | 350 mW |
The device supports collector currents up to 500 mA for general use, with a continuous rating of 800 mA.
The BSR14 is available in a SOT-23 package.
No, Fairchild's products are not authorized for use as critical components in life support devices without express written approval.
