This document describes the features of the BSR17A NPN general purpose amplifier and switch. It has a useful dynamic range of up to 100mA as a switch and up to 100MHz as an amplifier.

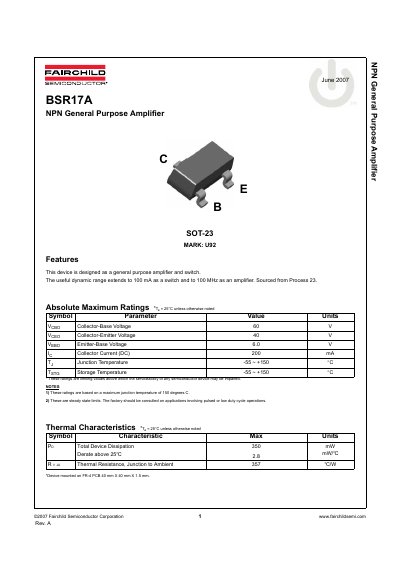

This document is a datasheet for the Fairchild Semiconductor BSR17A, an NPN General Purpose Amplifier designed for both amplification and switching applications. The device features a dynamic range extending to 100 mA as a switch and 100 MHz as an amplifier, sourced from Process 23.
| Collector-Base Voltage | 60 V |
|---|---|
| Collector-Emitter Voltage | 40 V |
| Emitter-Base Voltage | 6.0 V |
| Collector Current (DC) | 200 mA |
| Junction Temperature | -55 ~ +150 °C |
| Storage Temperature | -55 ~ +150 °C |
The useful dynamic range extends to 100 mA as a switch and to 100 MHz as an amplifier.
The maximum junction temperature is 150 degrees C.
