NDS0610 P-Channel Enhancement Mode Field Effect Transistor is a voltage controlled small signal switch with low RON(on) and high saturation current.

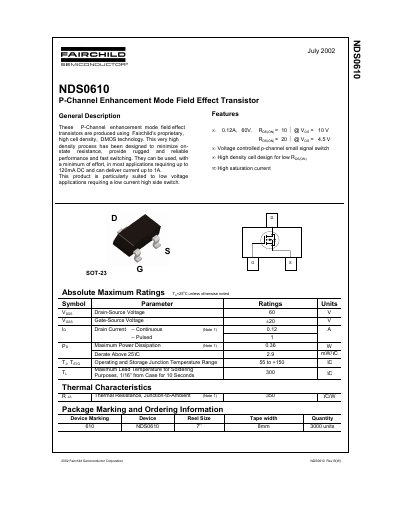

The document describes the Fairchild NDS0610, a P-Channel enhancement mode field effect transistor produced using proprietary DMOS technology. It is specifically suited for low voltage applications requiring a low current high side switch, capable of delivering up to 1A of current with minimal on-state resistance.
| Drain-Source Voltage (Vss) | -60 V |
|---|---|
| Gate-Source Voltage (Vgs) | +20 V |
| Operating Junction Temperature Range | -55 to +150 °C |
The device can handle a continuous drain current of up to 0.12 A.
The maximum power dissipation is rated at 0.36 W.
The device operates and stores within a range of -55 to +150 °C.
