MTP3055VL is a logic level N-channel MOSFET that is specifically designed for low voltage, high speed switching applications such as power supplies and power motor controls. It features faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications.

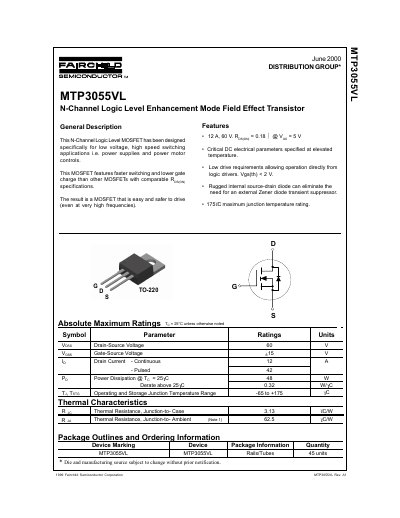

This document is a technical datasheet for the Fairchild Semiconductor MTP3055VL N-Channel Logic Level Enhancement Mode Field Effect Transistor. The device is specifically designed for low voltage, high speed switching applications such as power supplies and motor controls.
Key features include a maximum drain-source voltage of 60V, a continuous drain current of 12A, and an on-resistance (Rds(on)) of 0.18 ohms at Vgs=5V. The transistor operates with low drive requirements, featuring a gate threshold voltage less than 2V, allowing direct operation from logic drivers.
| Drain-Source Voltage (Vdss) | 60 V |
|---|---|
| Continuous Drain Current (Id) | 12 A |
| On-Resistance (Rds(on)) | 0.18 Ohms @ Vgs=5V |
| Gate Threshold Voltage (Vgs(th)) | < 2 V |
It is designed specifically for low voltage, high speed switching applications such as power supplies and motor controls.
Yes, it features low drive requirements allowing operation directly from logic drivers.
