The NDS332P P-Channel Logic Level Enhancement Mode Field Effect Transistor is a low voltage application field effect transistor produced by Fairchild. The product has extremely low on-state resistance and is suitable for notebook computer power management, portable products and consumer electronics applications.

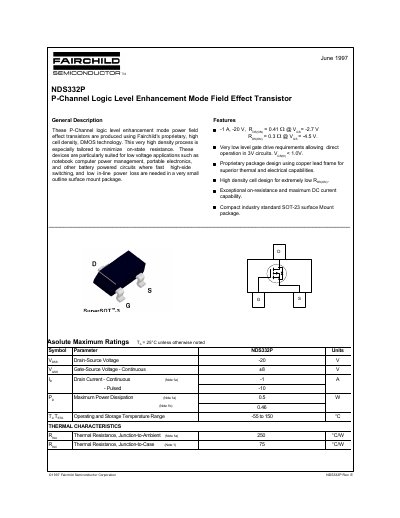

The Fairchild NDS332P is a P-Channel logic level enhancement mode power field effect transistor produced using Fairchild's proprietary high cell density DMOS technology. These devices are specifically tailored to minimize on-state resistance and are suited for low voltage applications such as notebook computer power management and portable electronics where fast high-side switching and low in-line power loss are required.
| Drain-Source Voltage | -20 V |
|---|---|
| Gate-Source Voltage | Continuous +8 V |
| Continuous Drain Current | -1 A |
| Maximum Power Dissipation | 0.5 W |
| Operating Temperature Range | -55 to 150 °C |
| Thermal Resistance Junction-to-Ambient | 250 °C/W |
| Thermal Resistance Junction-to-Case | 75 °C/W |
| Package Type | SuperSOT-3 |
The maximum continuous drain current is -1 A.
The on-state resistance is 0.41 Ω at Vgs=-2.7 V.
The turn-on delay time is 8 ns.
